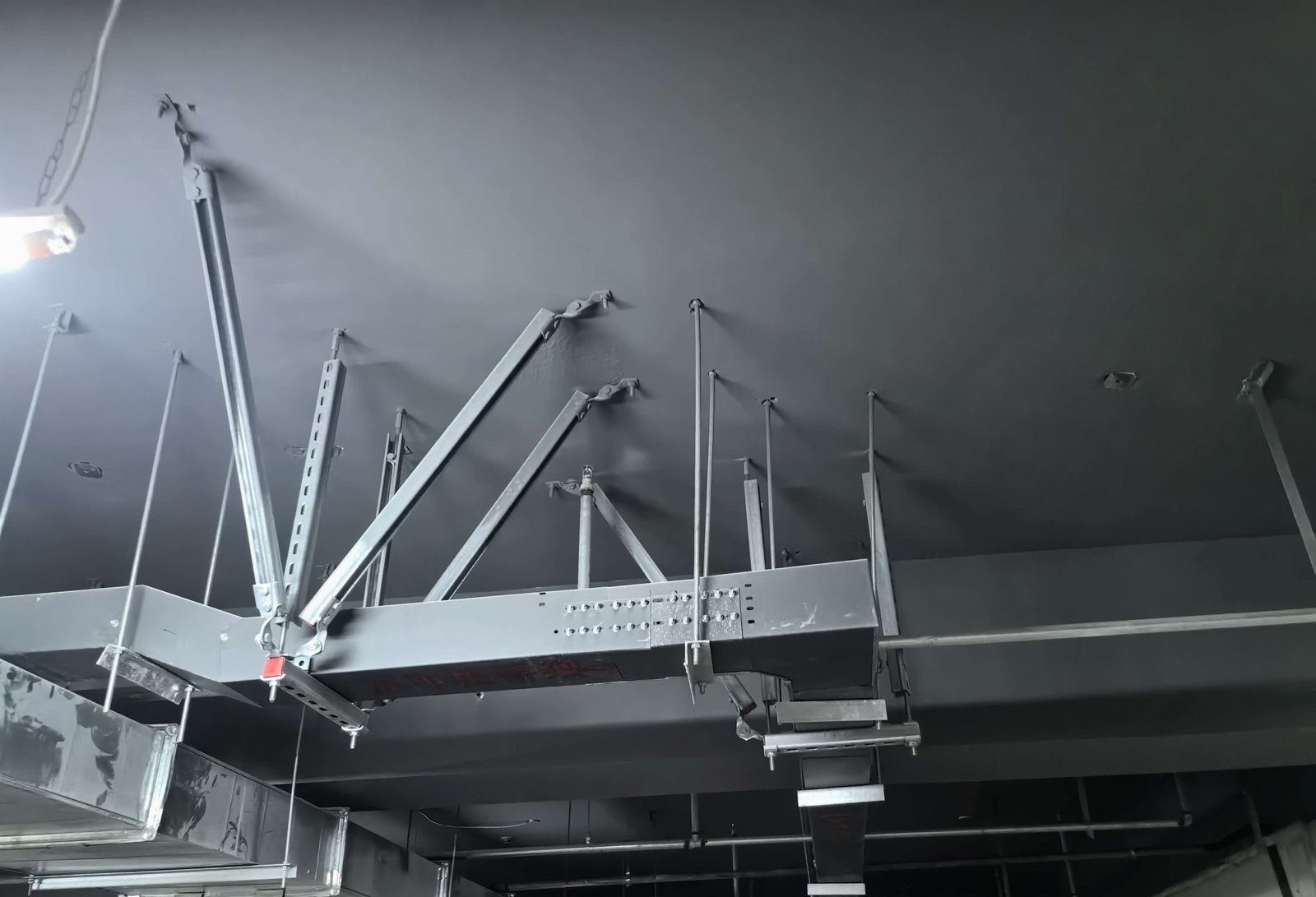

Prefabricated seismic bracing assembly on a cable tray run

PREFABRICATED KITS · OEM

Seismic Bracing Assemblies

Ready-to-install bracing kits combining C-channel, diagonal braces and attachments for pipe, duct and cable tray. We engineer the layout and ship pre-cut, pre-punched.

Application	Fire sprinkler, HVAC duct, cable tray, piping
Steel grade	Q235B / Q355B
Finish	Hot-dip galvanized, Z275–Z550 g/m²
Channel size	41×41, 41×21 (single / double)
Brace angle	45° standard, other angles on request
Customization	Cut length, hole pattern, pre-assembly

Request Quote Datasheet →

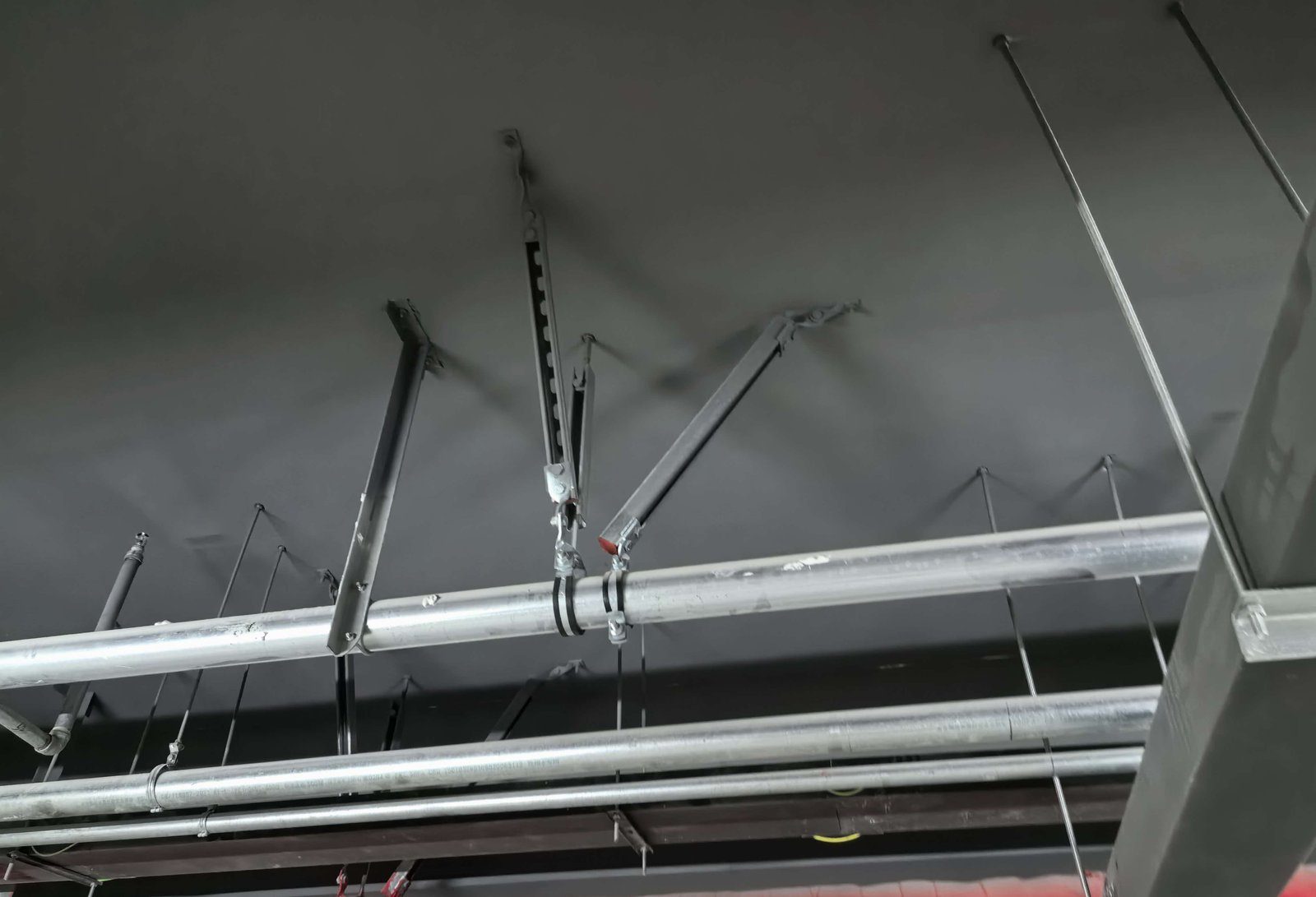

Slotted C-channel strut and pipe support fittings

C-CHANNEL SYSTEM

Strut Channel & Fittings

Slotted C-channel and the complete fitting family — L-angle connectors, splices, spring nuts, plastic wing nuts, channel buckles and end caps.

Standard sizes	41×41, 41×21 (single/double)
Slot	Long slot / round hole / plain
Thickness	2.0 mm – 3.0 mm
Connectors	L-angle, flat, wing, T, U
Nuts	Spring nut, plastic wing nut, channel buckle
Customization	Punched, cut-to-length, logo-stamped

Request Quote Datasheet →

PIPE CLAMPS & HANGERS

Clamps, Hangers & Beam Clips

Full pipe-support family — P-type clamps with EPDM liner, heavy-duty riser clamps, cast-iron beam clips, welded pipe clamps and clevis hangers.

Clamp type	P-clamp, riser clamp, double-ring, clevis
Pipe range	DN15 – DN300
Insert	EPDM rubber / silicone, or bare steel
Beam clip	C-channel clip, I-beam clip, no-drill
Material	Q235B steel / cast iron
Finish	HDG, zinc-plated, or black

Request Quote Datasheet →

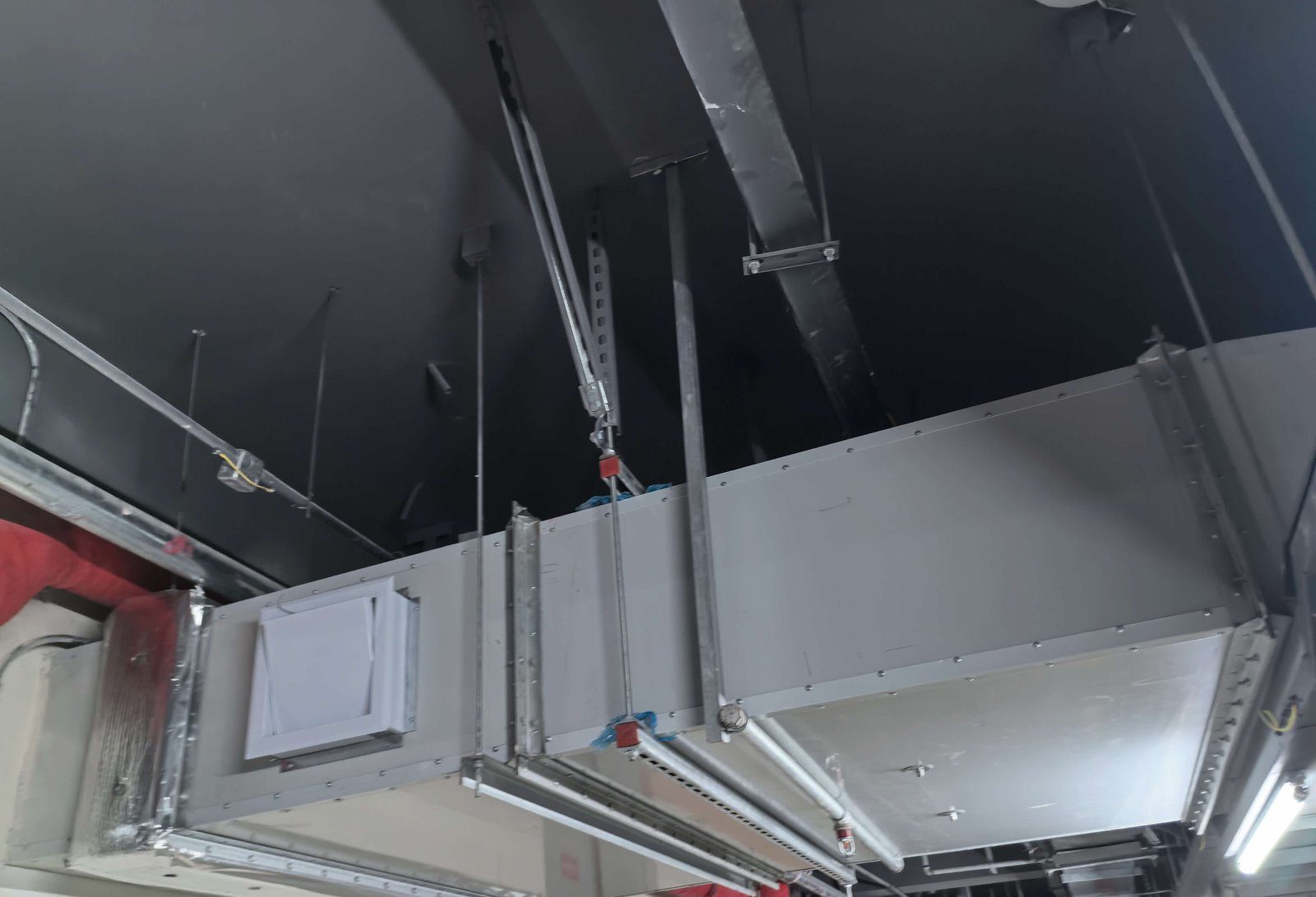

Custom fabricated brackets and duct supports

CUSTOM FABRICATION

Draw-to-Print Metalwork

Send us your drawings — we CNC punch, laser cut, bend, weld and hot-dip galvanize brackets to your exact specification, with private-label packaging.

Process	CNC punch, laser cut, bend, robotic weld
Material	Q235B, Q355B, aluminum, stainless
Thickness	1.5 mm – 12 mm
Sample lead time	7 days
Mass production	20–25 days
MOQ	Negotiable, typically 500 pcs

Send Drawing View Process →

WHY SPECIFY YAOJING SEISMIC

Engineered Beyond the Catalog

Made to Your Spec

Fabricated to your drawings, steel grade and galvanization thickness — material mill certificates available on request.

OEM & ODM

Produce to your drawings, brand and packaging. Private-label programs for regional distributors.

Fast Lead Time

Standard channel and brackets in stock; container shipments in 15–25 days.

Need a Seismic Submittal Package?

We provide CAD drawings, bill of materials and packing plans for your project submittal — and work directly with your engineer on any special requirements.

Request Submittal
